234499-16

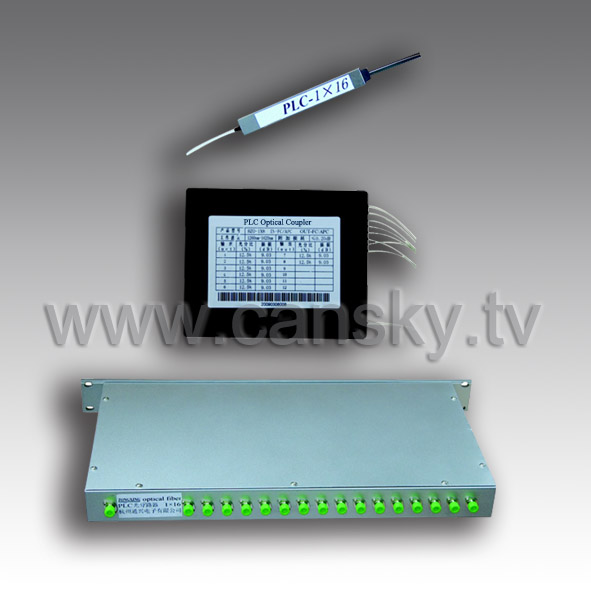

19  Rack  PLC Optical Coupler 16 ways

Features

1)Compliance to Telcodia Standard

2)Varieties of coupling radios available

3)High Quality /price ratio

4)Excellent environmental and mechanical stability

5)Low PDL

6)Good directivity

Parameters
Working Wavelength:	1310nm/1550nm/1490nm
Bandwidth:	±40nm
Coupling Ration (%):	1-50%
Typical dependent loss:	≤0.15dB
PDL:	≤0.1dB
Typical Insertion loss:	≤3.2dB
Homogeneity:	≤0.9dB
Directivity:	≥60dBm
Temp Stability:	≤0.002dB/oC
Working Temp:	-40-+70oC
Storage Temp:	-40-+85oC
Max. Power:	300mW
Max. fiber tensile load:	5N
