Download

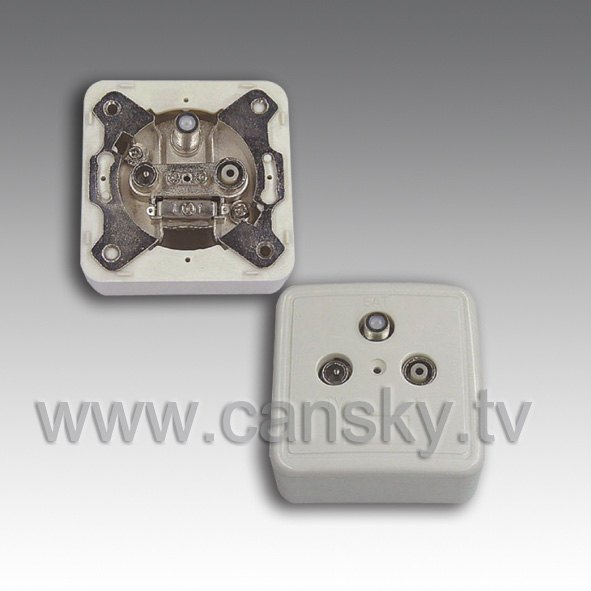

wall outlet socket
Item Number:
233110/233120
Packaging Details:
standard packing


Product Description

233110(through)
233120(terminal)
for CATV use
TV:9.5mm Male/Radio:9.5mm Female/Sat F Female
CE approved
¡¡ Port Frequency Range(MHz) 233110 Specification(dB) 233120  Specification(dB)
Insertion loss(dB) IN-OUT 5~2400 5.5~6.5 ¡¡
SAT 950~2400 5.5~6 3~3.5
RADIO 88~108 5.5~6.5 2.5~3
TV 5~86               125~1000  4.5~5.5                                   4.5~5.5 2.5~3                                    2.5~3
Isolation(dB) SAT 950~2400 20 20
RADIO 88~108 15 20
TV 5~86                125~1000 15                                           20 20                                        20
Return loss(dB) SAT 950~2400 15 15
RADIO 88~108 14 15
TV 5~86                125~1000 14                                           15 15                                        14
