Download

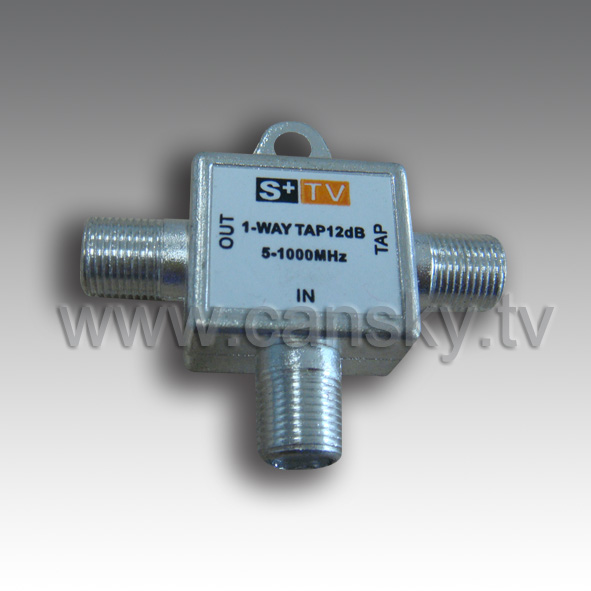

5-1000MHz 1-way CATV tap
Item Number:
224310
Packaging Details:
500pcs/carton,33X26X28cm/0.024cbm,15/14kgs


Product Description

224310 1GHz 1-way CATV tap
zinc die-cast housing,nickel-plating
all ports F-female connector,75ohm
built-in two grounding block
two pieces of screws attached
tolerance:¡À1dB
Specification Insertion  Loss(dB) Isolation Out to tap(dB) return loss(dB)
1-way tap
6dB 2.6 20 15
9dB 2.2 20 15
12dB 1.4 20 15
16dB 1.2 28 15
20dB 1.2 24 15
24dB 1.2 32 18
27dB 1 34 18
30dB 1.2 35 18
