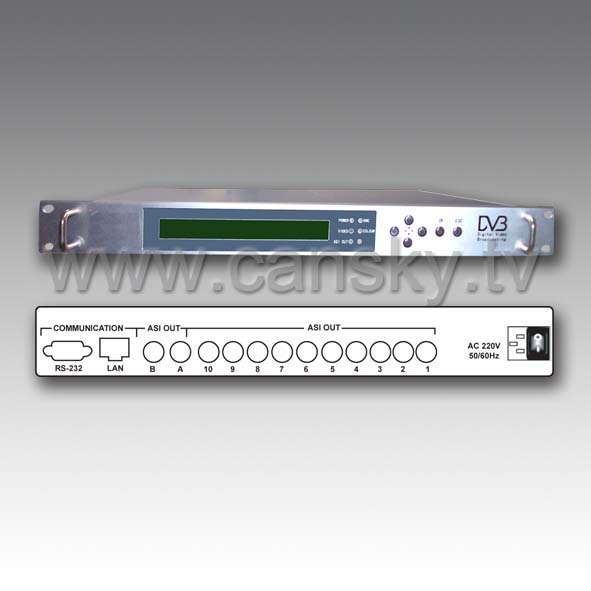

S206 |
|
TS Stream Re-multiplexer |
|
|
|
Product Features: |
|
Support 10-way TS input,2-way TS independent output |
Support PSI/SI management table editor |
The realization of the complexity of the PSI/SI processing |
Support PID and Service ID mapping ,PCR correction |
Support arbitrary PID turner biography |
Support data broadcasting,EPG and insertprivate data |
Support the ethemet receive data multiplexing into TS stream |
Input and Output Rate:Max 200Mbps |
|
Input TS packet length(188/204)adaptive,output packet length can be set |
Support network management |
|
Technical Parameters |
Input |
10-way DVB standard ASI format BNC/75Ω interface Conform EN50083-9 Code rate:MAX input 200Mbps Input packet length:188/204b auto detection |
Output |
2-way DVB standard ASI format multiplexing output BNC/75Ω interface Conform EN50083-9 Code rate:MAX input 200Mbps Output packet length:188/204b |
Network interface |
RJ45 Interface(10/100M Adaptive) |
General: |
Operating Temperature: |
5-45℃ |
Storage Temperature: |
-25-80℃ |
Humidity: |
10-75% |
Power supply: |
AC 90-260V 50/60Hz 20W |
Dimensions: |
483mmx350mmx44mm |
Weight: |
3kg |
