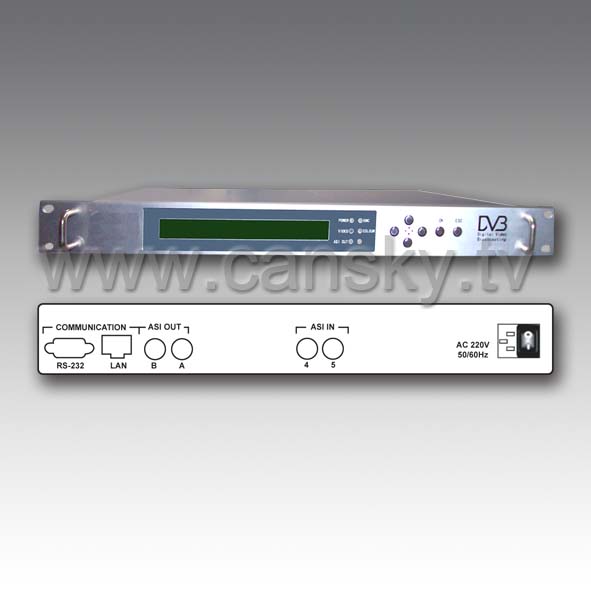

S306 |
|
Scrambling Device Independent |
|
|
|
Product Features: |
|
Designated programs and real-time transport stream scrambling |
In line with the DVB common scrambling algorithm for DVB-CAS |
DVB interface with support for encryption,compatible with a number of CAS conditional access system |
Enter the effective rate 1-60Mbps |
Can send fixed or wariable control word scrambling ,scrambling cycle minimum 5 seconds |
Support rate adaptive,PCR correction |
Up to 100 different programs ,scrambling,scrambling way of support for PID |
Treatment and reuse with the CA-related PSI/SI information |
Support for automatic backup feature to switch the input |
Support network management |
|
Technical Parameters |
2-way TS input |
DVB standard ASI format,BNC/75Ω interface |
2-way TS output |
DVB standard ASI format BNC/75Ω interface |
Network interface |
RJ45 Interface(10/100M Adaptive) |
General: |
Operating Temperature: |
5-45℃ |
Storage Temperature: |
-25-80℃ |
Humidity: |
10-75% |
Power supply: |
AC 90-260V 50/60Hz 20W |
Dimensions: |
483mmx350mmx44mm |
Weight: |
3kg |
