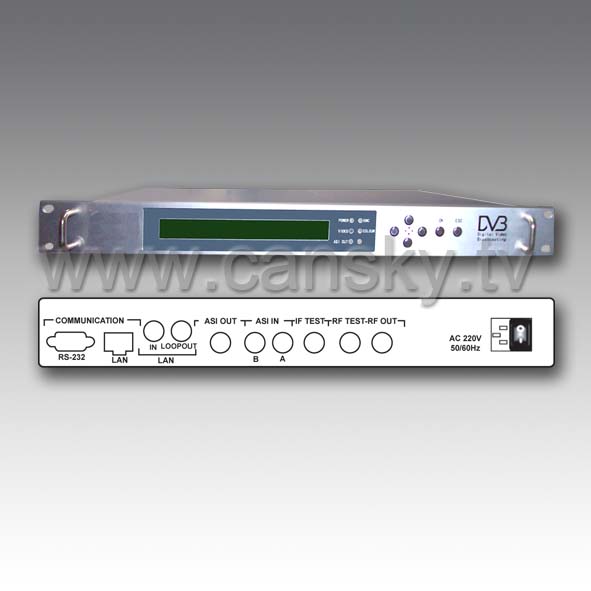

| S516 |
|
| QPSK (DVB-S) Modulator |
|
|
|
| Product Features: |
|
| 1-way tuner input: Support DVB-C,DVB-T,DVB-S,DVB-S2,ABS-S |
| 2-way independent TS input(Optional) |
| Support PSI/SI Processing,PCR Correction |
| Support Arbitrary PID filtering and mapping |
| DVB-C standard ETSI/EN 300 744 |
| Support Network Management |
| Technical Parameters |
| 2-way TS input: |
DVB standard ASi format,BNC/75Ω interface |
| 1-way RF input: |
F-Type interface,Support DVB-C,DVB-T,DVB-S,DVB-S2,ABS-S |
| 1-way TS output: |
DVB standard ASi format,BNC/75Ω interface |
| 1-way IF monitor output: |
BNC/75Ω interface |
| 1-way RF output: |
output Frequency: 45-860MHZ frequency agile |
| Stepped-frequency: 100KHZ |
| Output Level: 85-113dBuv |
| Stepped-level: 0.5dB |
| FEC Convolutional coding coefficient:1/2,2/3,3/4,5/6,7/8 |
| Symbol Rate:1-45M/s Adjustable |
| Network Management Interface: |
RJ45 Interface(10/100M Adaptive) |
| General: |
| Operating Temperature: |
5-45℃ |
| Storage Temperature: |
-25-80℃ |
| Humidity: |
10-75% |
| Power supply: |
AC 90-260V 50/60Hz 20W |
| Dimensions: |
483mmx350mmx44mm |
| Weight: |
3kg |
