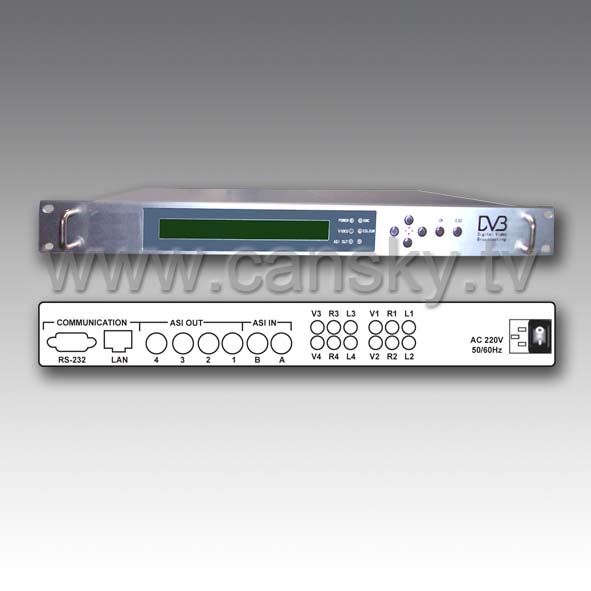

| S801 |
|
| Four-in-One MPEG-2 Standard Definition Encoder |
|
|
| Product Features: |
|
|
|
| 4-way Video and Audio input |
| 2-way TS input |
|
| 2-way independent multiplexing function |
| 4-way TS output |
|
| Can be config 2-way encoder output and 2-way independent multipexing output |
| MPEG-2 MP&ML 4:2:0 Standard |
| MPEG Layer I/II Audio Standard |
| Encoding output rate:1.5-15Mbps |
| Support resolution:Full D1,3/4 D1,2/3 D1, Half D1,SIF,QSIF |
| With image pre-processing and time base correction technique |
| Support other TS,EPG,Data broadcasting input |
| Support PSI/SI processing,PCR Correction |
| Support input TS the PID and Service ID Mapping |
| Support Network management |
| Technical Parameters |
|
| 4-way Video input: |
CVBS Composite Video,BNC/75Ω interface,RCA interface |
| 4-way Audio input: |
L/R Non-equilibrium audio,BNC/75Ω interface |
| 2-way TS input: |
DVB standard ASI format,BNC/75Ω interface |
| 4-way TS output: |
DVB standard ASI format,BNC/75Ω interface |
| Network interface: |
RJ45 interface(10/100M Adaptive) |
| General: |
| Operating Temperature: |
5-45℃ |
| Storage Temperature: |
-25-80℃ |
| Humidity: |
10-75% |
| Power supply: |
AC 90-260V 50/60Hz 20W |
| Dimensions: |
483mmx350mmx44mm |
| Weight: |
3kg |
