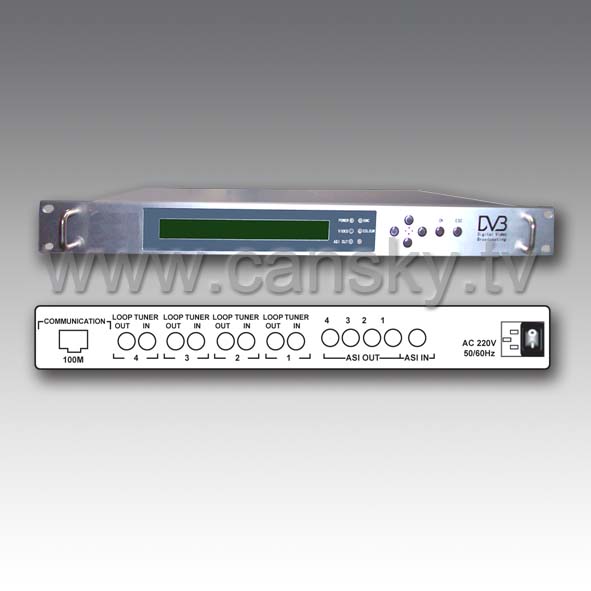

| S802 |
|
| Composite Bit-Stream Receiver |
|
|
| Product Features: |
|
|
|
| 1-way Analog Video , Audio Output |
| 1-way TS input |
|
| 4-way independent TS output |
| Support DVB-C,DVB-T,DVB-S,DVB-S2,ABS-S Tuner |
| Support Max 4-way Tuner |
|
| Support PSI/SI processing,PCR Correction |
| Support TS input PID and Service ID Mapping |
| DVB-CA Descrambling Function(Optional) |
| Support Network management |
| Technical Parameters |
|
| RF input: |
Support Max 4-way, F-Type interface, Support DVB-C,DVB-T,DVB-S,DVB-S2,ABS-S |
| TS output: |
Support Max 4-way,support DVB ASI Format, BNC/75Ω Interface |
| Analog Video Output: |
CVBS Composite Video,RCA Interface |
| Analog Audio Output: |
L/R Stereo,RCA Interface |
| Network interface: |
RJ45 interface(10/100M Adaptive) |
| General: |
| Operating Temperature: |
5-45℃ |
| Storage Temperature: |
-25-80℃ |
| Humidity: |
10-75% |
| Power supply: |
AC 90-260V 50/60Hz 20W |
| Dimensions: |
483mmx350mmx44mm |
| Weight: |
3kg |
