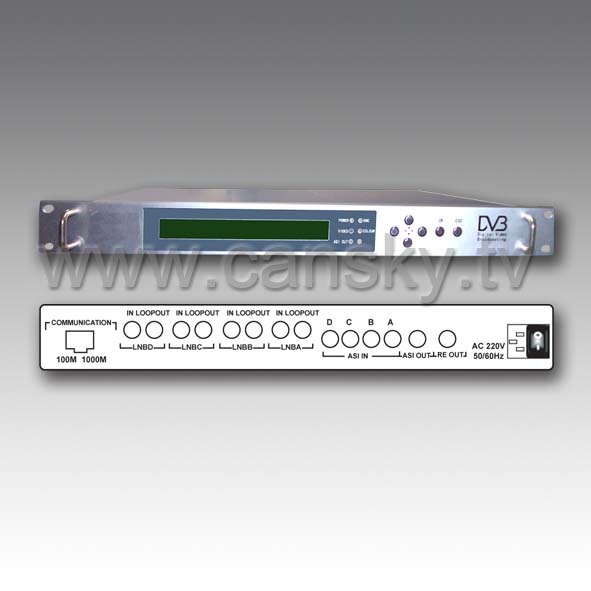

| S810 |
|
| Integrated Digital TV Processors |
|
|
|
| Product Features: |
|
|
|
| 4-way Tuner Input |
|
| Support for DVB-C,DVB-S,DVB-S2,ABS-S any combination |
| 4-way TS stream input |
|
| 1-way TS over IP Input and Output |
|
| 1000M network interface |
|
| Support 4-way QAM Modulation output |
| 5-Way independent multiplexing processing unit |
| The realization of PSI/SI processing,PCR correction,PID mapping |
| 5-Way independent scrambling processing unit |
| DVB-C Standard ETSI/EN 300 429 |
|
| Support Network management |
|
| Technical Parameters |
|
| 4-way TS Tuner Input: |
DVB standard ASI format,BNC/75Ω interface |
| 4-way RF Input: |
F/75Ω interface Support DVB-C,DVB-T,DVB-S,DVB-S2,ABS-S |
| 1-way TS Tuner Output: |
DVB standard ASI format,BNC/75Ω interface |
| 1-way 1000M Network Interface: |
RJ45 Interface,10/100/1000M Adaptive |
| 1-Way RF Output: |
Output Frequency:45Mhz～860Mhz Stepped-Frequcncy 100KHz |
| Output level:85～110dBuv Min Stepped 0.5dB |
| QAM Modulation;16QAM,32QAM,64QAM,128QAM,256QAM |
| Symbol rate per channel output:1～7Mb/s Adjustable |
| Network Management: |
RJ45 Interface,10/100/1000M Adaptive |
| General: |
| Operating Temperature: |
5-45℃ |
| Storage Temperature: |
-25-80℃ |
| Humidity: |
10-75% |
| Power supply: |
AC 90-260V 50/60Hz 20W |
| Dimensions: |
483mmx350mmx44mm |
| Weight: |
3kg |
