234481/234482

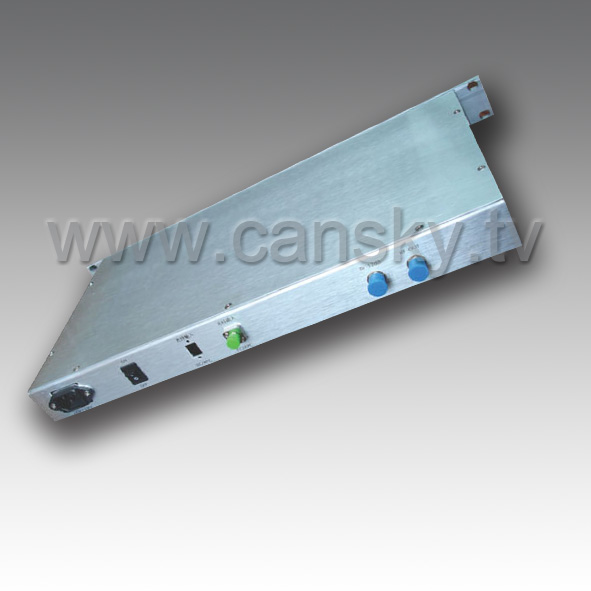

indoor super-low fiber power receiver
Frequency Range(MHZ)		47-750,53-750,87-750,(860)		Representative Light Power(dBm)		-1
Light Wave (nm)		1310/1550		Ghannel Number(PAL-D)		59
Equivalent Yawp Current		7		Output Level(dBuV)		90-104
Input Light Power(dBm)		-8		CNR(dB)		52
Light Power Detect(wM\V)		10V/Mw		CSO(dB)		60
Light Tie-in Type		FC/APC(SC/UPC)		CTB(dB)		65
Light Return Loss(dB)		≥40		Signal to AC Noise(dB)		66
RF Return Loss(dB)		≥16		Resist Lightning Strike(KV)		5(10/700uS)
Response Flatness(dB)		+ 0.75dB(47-750MHZ)		Operation Voltage(V)		30-75,220V±10%
Gain Range(dB)		0-18		Power Loss(A/V)		0.8A/24V
Slope Range(dB)		0-18
