5-1000MHz 3-way CATV splitter
Item Number:
220220
Packaging Details:
200pcs/carton,39X22X27cm/0.02317cbm,13/12kgs


Product Description

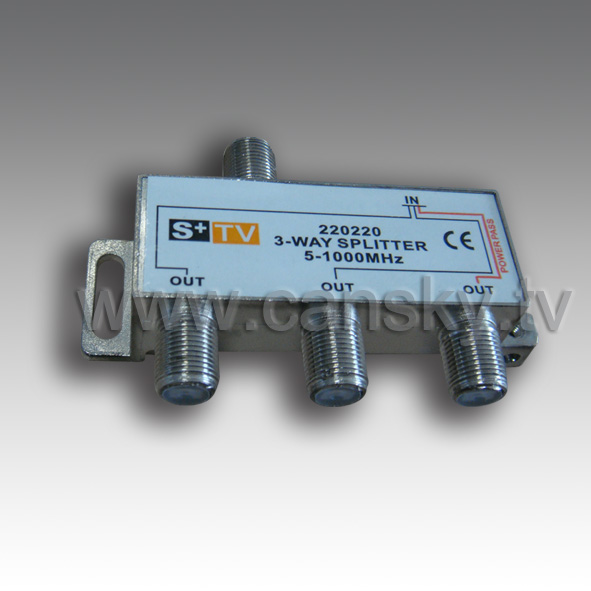

220220 5-1000MHZ 3-way CATV splitter(power pass to on port)
zinc die-cast housing,nickel-plating
all ports F-female connector,75 ohm
power passing 24 VDC 1A mas
built-in two grounding block
two pieces of screws attached
tolerance:¡À0.5dB
Frequency Range(MHz) 5-10 10-40 40-470 470-860 860-1000
Insertion loss (dB) 5.5 5.6 6.1 6.5 6.9
Insolation(dB) 21 24 24 22 20
Return Loss(dB) 14 15 16 15 15
