5-1000MHz 4-way CATV splitter
Item Number:
220320
Packaging Details:
200pcs/carton,39X22X27cm/0.02317cbm,13/12kgs


Product Description

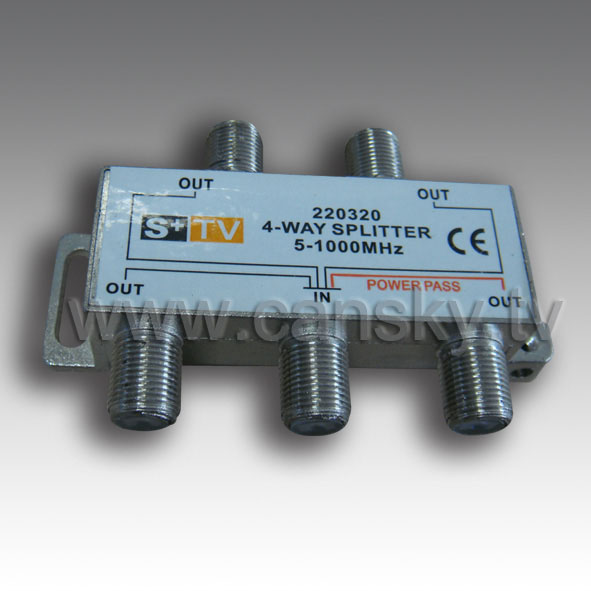

220320 5-1000MHZ 4-way CATV splitter(power pass to on port)
zinc die-cast housing,nickel-plating
all ports F-female connector,75 ohm
power passing 24 VDC 1A mas
built-in two grounding block
two pieces of screws attached
tolerance:¡À0.5dB
Frequency Range(MHz) 5-10 10-40 40-470 470-860 860-1000
Insertion loss (dB) 6.9 7.3 7.5 7.8 8.1
Insolation(dB) 20 23 22 22 20
Return Loss(dB) 15 16 17 16 15
