234485

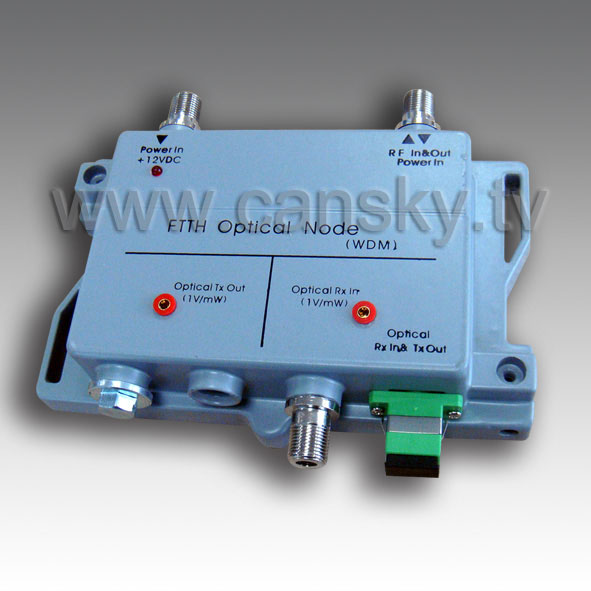

indoor optical node ( receiver  )

Features

1)      especially designed for FTTH, FTTP, FTTO, FTTS

2)      adopting Pin diode as Photo electricity modules

3)      adopting Gallium Arsenide Modules as amplifying modules

4)      AGC control

5)      1310 &1550 double windows, two outputs

Technical Parameters
Forward Input:	-10~+3 (-3~+1 is the best value)
Wave length:	1100nm~1600nm
Frequency:	54-862MHz
Output:	≥82dBV
Unflatless:	≤±1
Optical Return Loss	≥ 45dB
Output Return Loss	≥ 16dB
Output Impendence:	75Ω
Output Level:	≥100dBuV
CTB	≥65dB
CNR	≥51dB
CSO	≥60dB
Power Supply:	DV12V~15V
