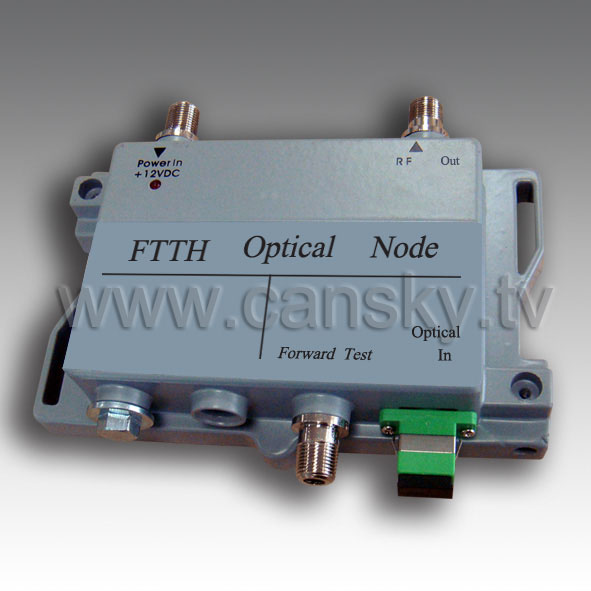

WDM indoor optical node (receiver ), with return transmission
Item Number:
234487
Packaging Details:
1pc/box 10 pcs/carton 36x26x28cm /0.0262 cbm 11/10kgs


Product Description
234487
WDM indoor optical node (receiver ), with return transmission

Features:
1)      Adopting WDM technology to realize forward and return transmission in a single fiber
2)      Adopting Pin diode as Photo electricity modules
3)      Adopting Gallium Arsenide Modules as amplifying modules
4)      AGC control
5)      1310&1550 double windows, two outputs
6)      With return transmission

Technical Parameters Return Transmission:
Forward Input:   -10~+3(-3~+1 is the best value) Laser:  FP/DFB
Wavelength:   1100nm~1600nm Output:  0.5mW, 1mW, 2nW
Frequency:   54-862MHz Wavelength:  1310nm±30nm or1550±30nm
Output:  ≥82dBV Optical Connector:  SC/APC or FC/APC
Unflatless:  ≤±1 Bandwidth:   5-42MHz
Optical Return Loss  ≥ 45dB Output Impedance:   75Ω
Output Return Loss ≥ 16dB Output Return Loss:  ≥ 14dB
Output Impendence:  75Ω Input Level:   85-90dBuV
Output Level:  ≥100dBuV Unflatless:  ≤±1
CTB ≥65dB 　
CNR ≥51dB
CSO ≥60dB
Power Supply: DV12V~15V
